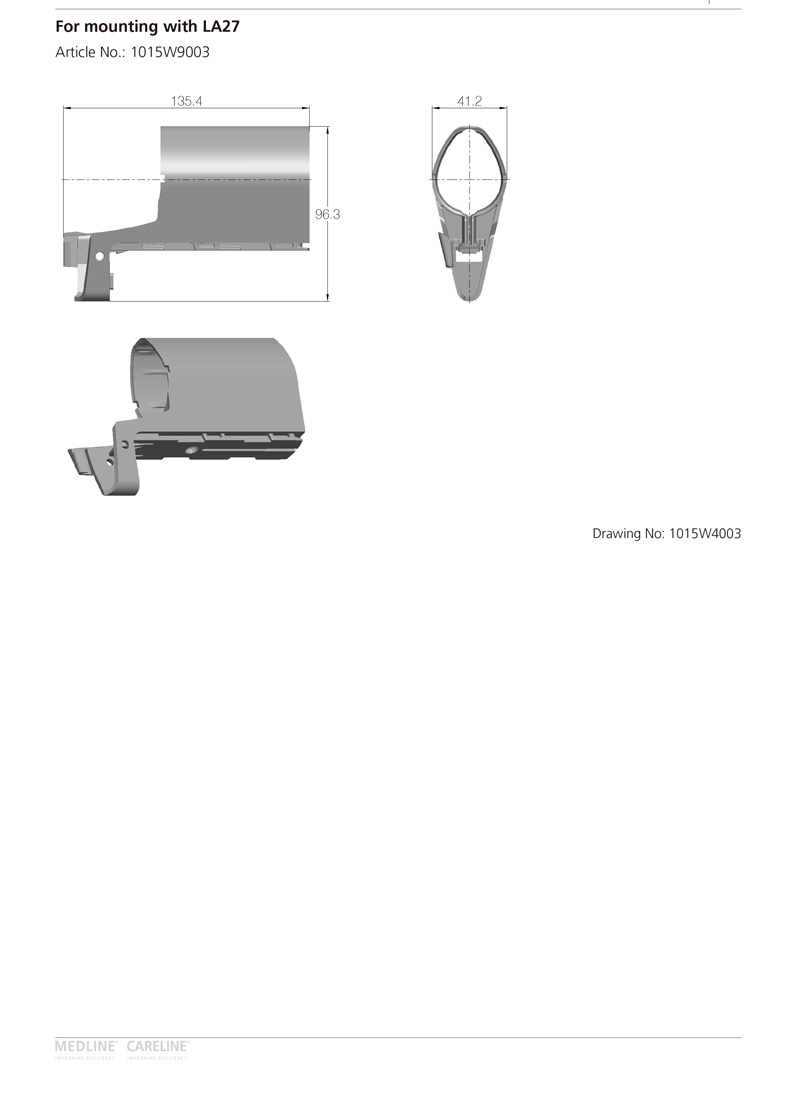

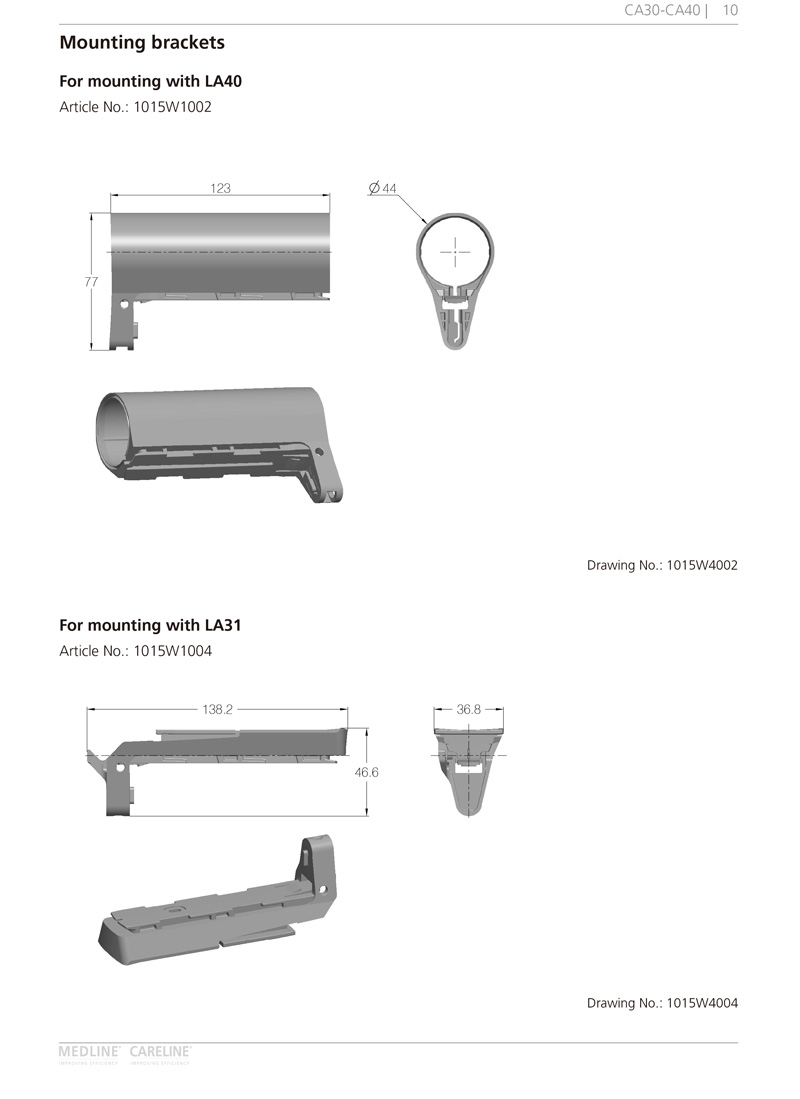

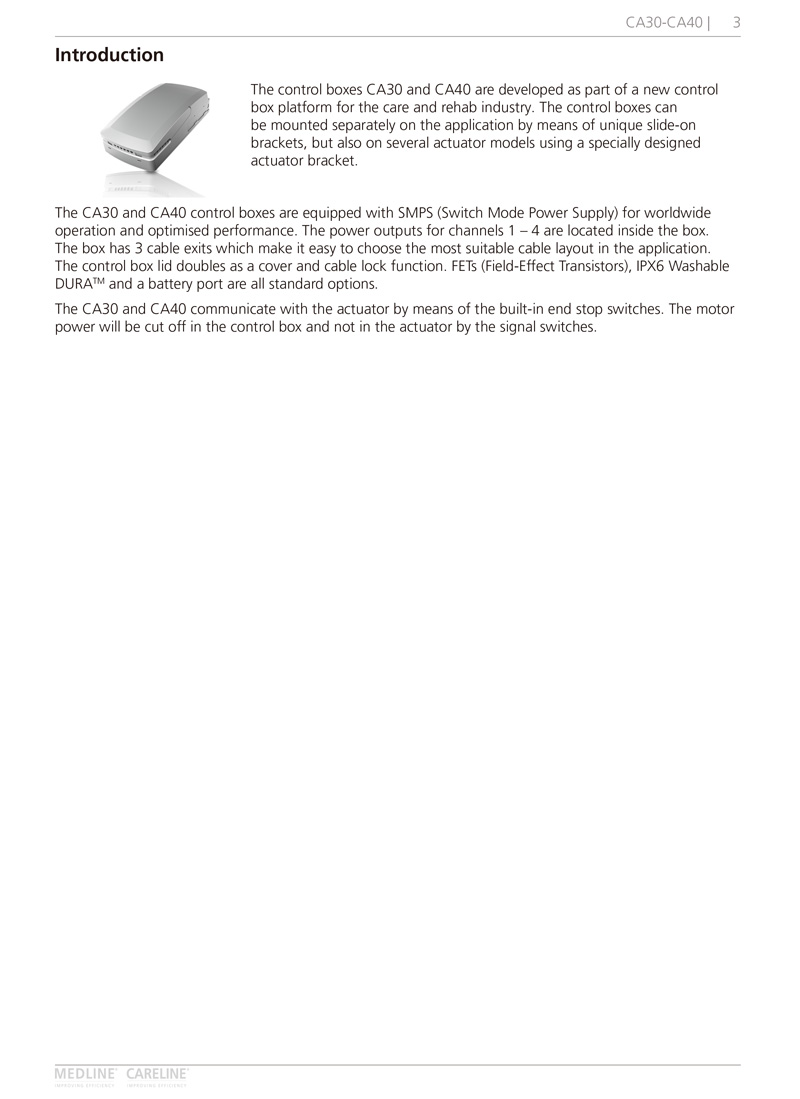

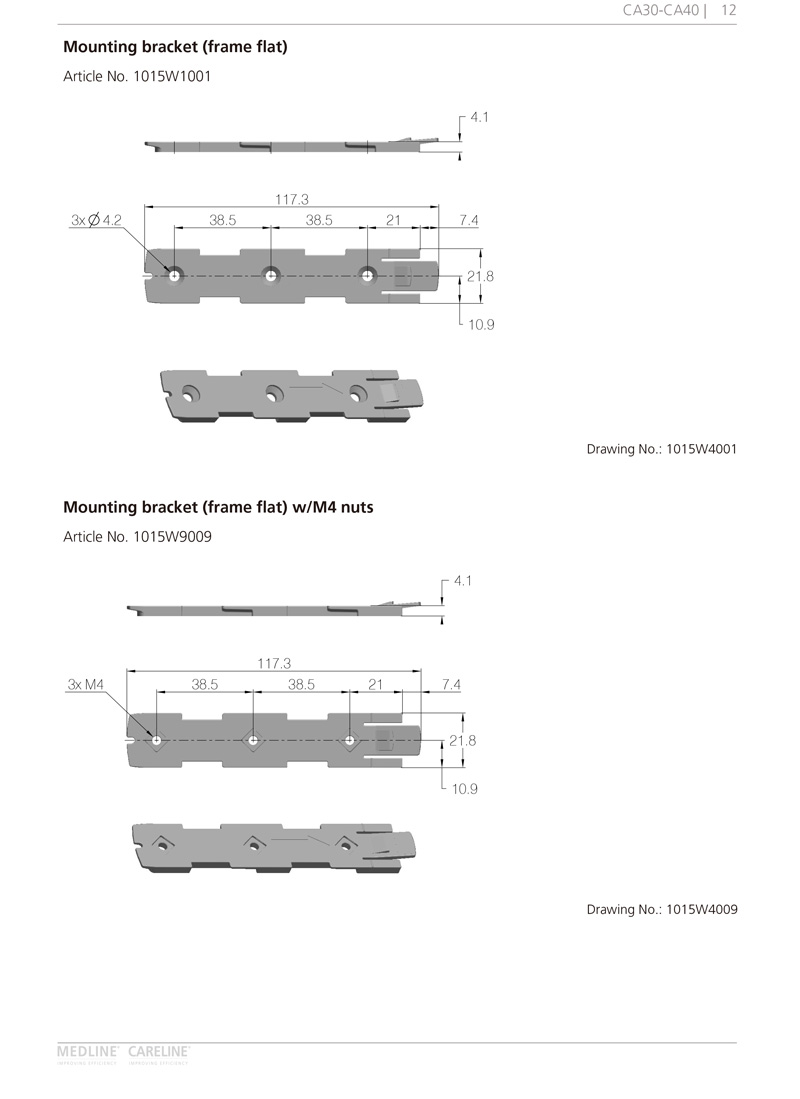

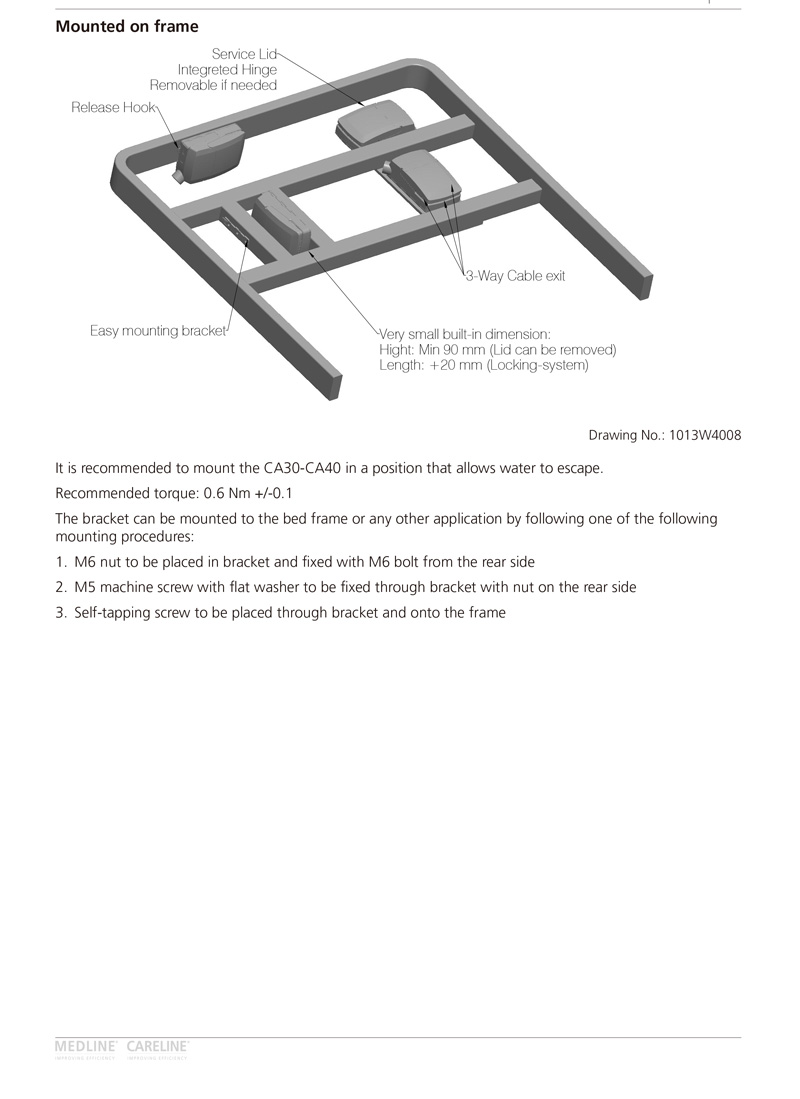

The control boxes CA30 and CA40 are developed as part of a new control box platform for the care and rehab industry. The control boxes can be mounted separately on the application by means of unique slide-on brackets, but also on several actuator models using a specially designed actuator bracket.

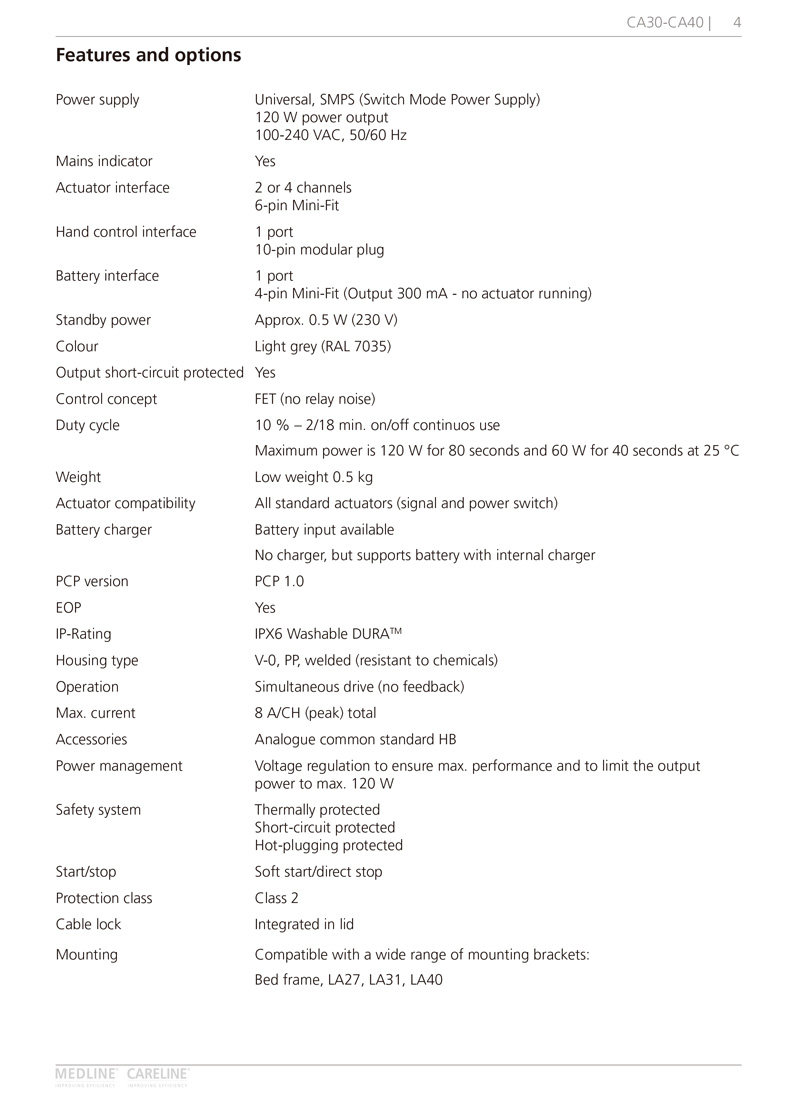

The CA30 and CA40 control boxes are equipped with SMPS (Switch Mode Power Supply) for worldwide operation and optimised performance. The power outputs for channels 1 – 4 are located inside the box. The box has 3 cable exits which make it easy to choose the most suitable cable layout in the application.

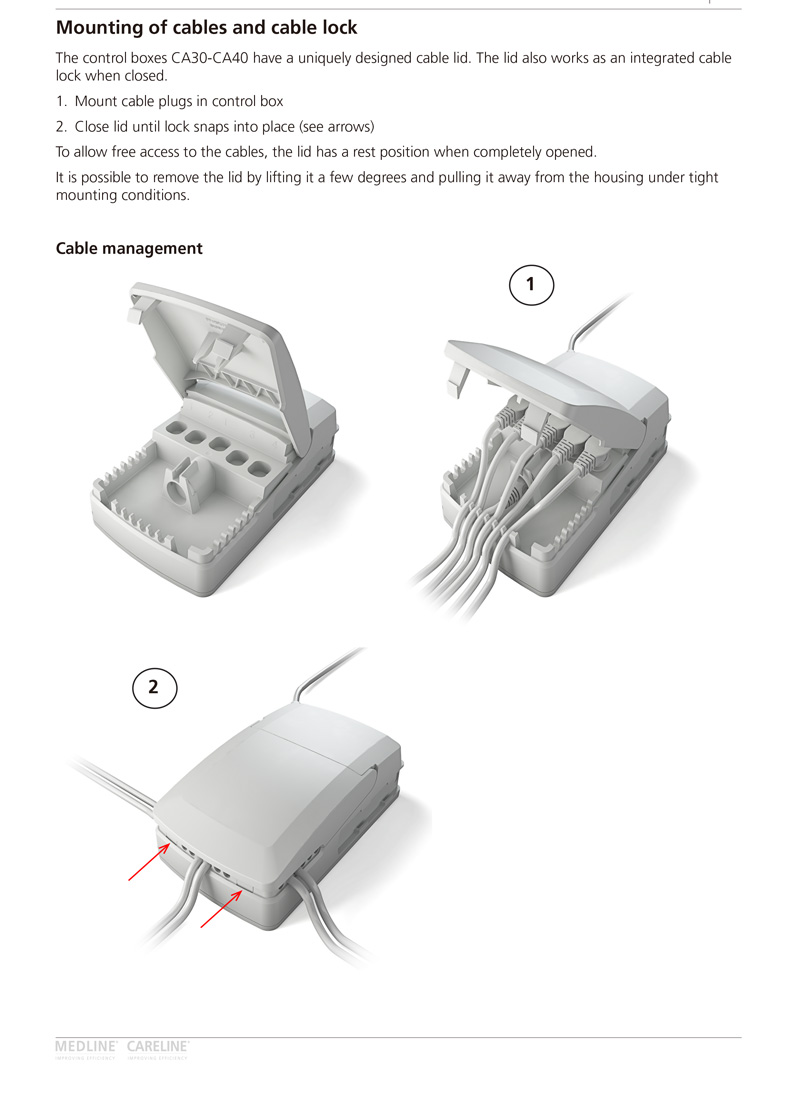

The control box lid doubles as a cover and cable lock function. FETs (Field-Effect Transistors), IPX6 Washable DURA™ and a battery port are all standard options.
