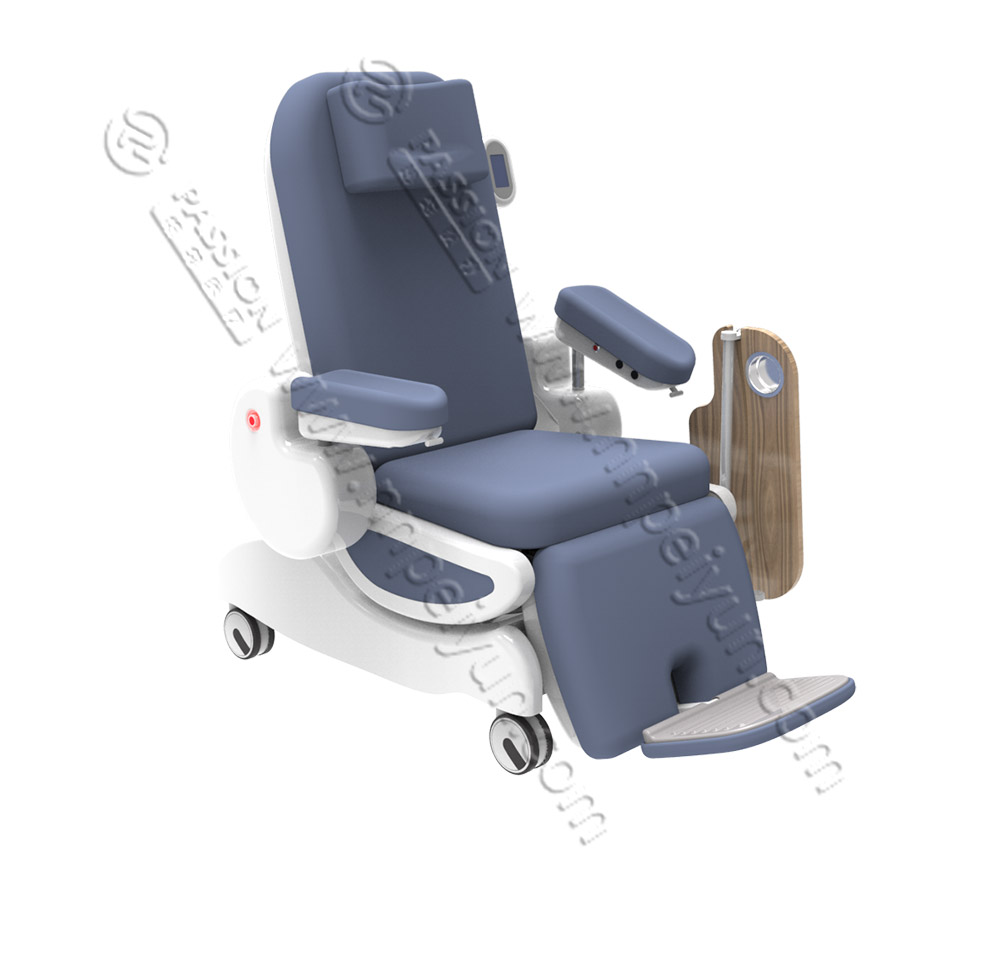

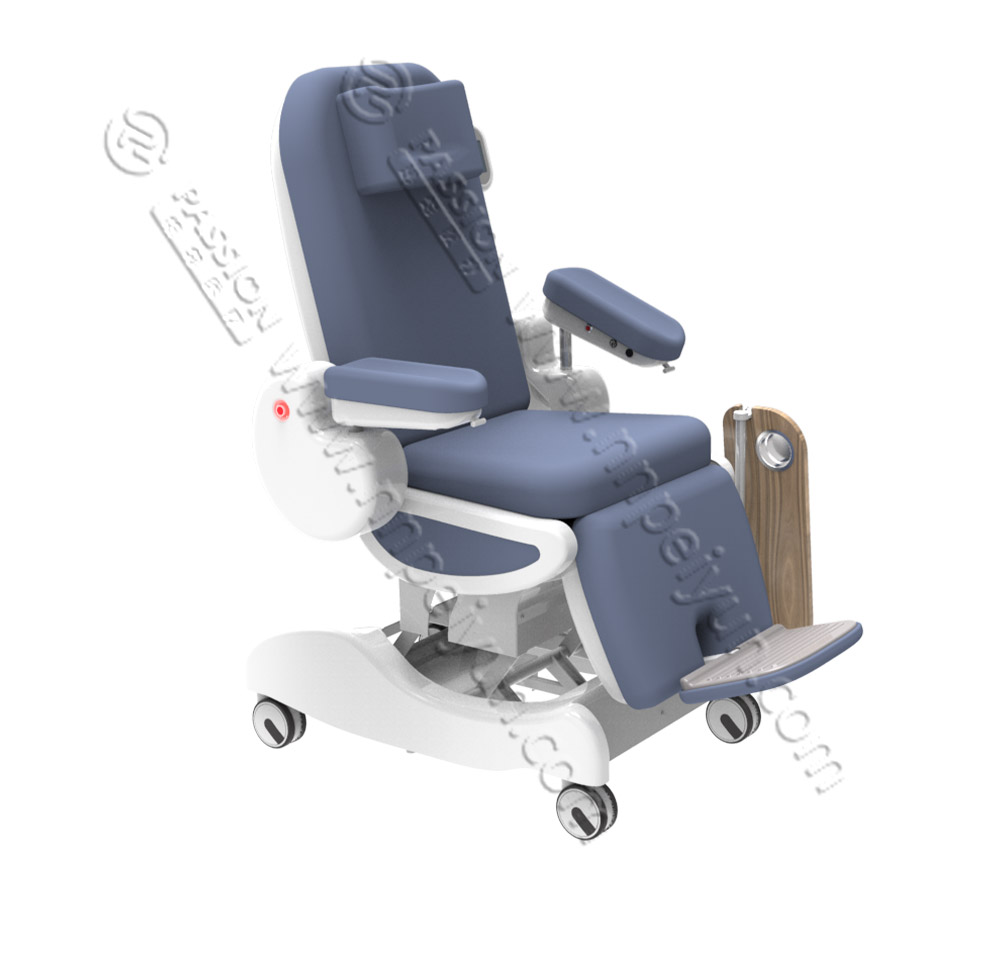

Passion PY-YD-345 Adjustable Reclining Phebotomy Chair

This premium Reclining Phebotomy chair is engineered for clinical, hospital environments, combining ergonomic design, reliable performance, and exceptional patient comfort. It supports five precise positioning functions: seated position, semi-recumbent position, back & knee position, flat position, and Trendelenburg position. The backrest, knee rest, and frame can be adjusted smoothly and steadily to accommodate various clinical needs and treatment procedures.

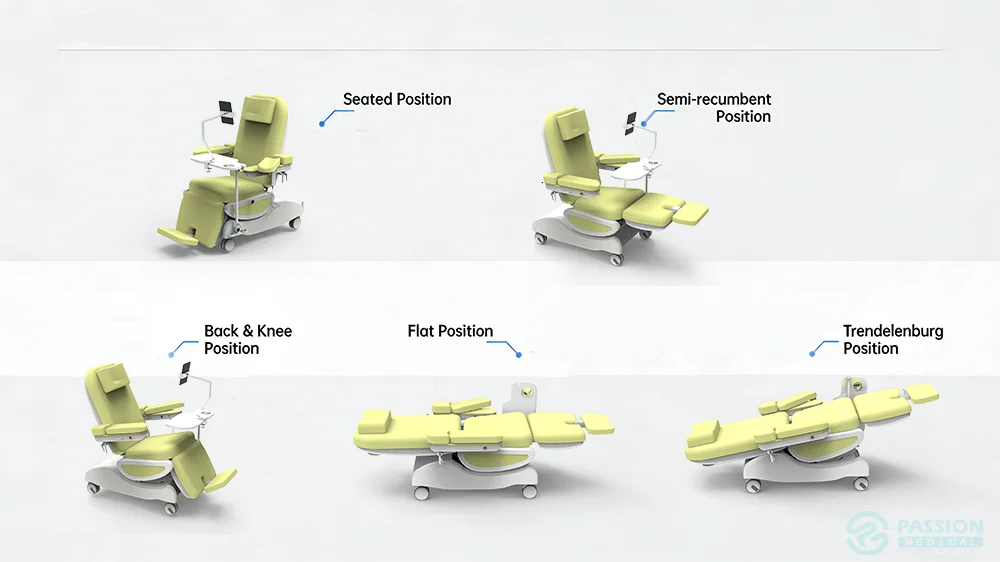

Figure 1: Five Adjustable Positions

Featuring a high-strength steel frame and skin-friendly, easy-to-clean upholstery, the chair ensures outstanding durability, structural stability, and long service life. It is available in a range of professional color options, including Aqua Green, Serene Blue, Blue, Green, and Lemon Yellow, to suit diverse medical facility layouts.

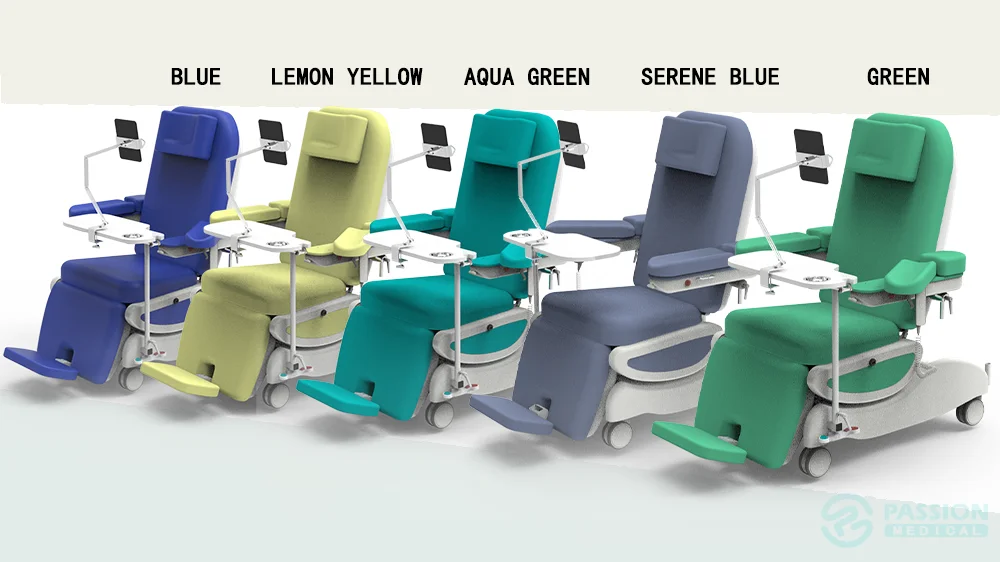

Figure 2: Color Options

Technical Specifications

How to read these figures. Safe working load (240 kg) is the load the frame, castors and actuators are rated for; maximum patient weight (220 kg) is the heaviest patient we recommend for this chair. Both are quoted because procurement teams check them separately and the two numbers are not interchangeable. Seat width and seat depth drive room planning: at 640 mm across the seat cushion and 920 mm overall, a chair needs a clear bay width of roughly 1.1 m to allow staff to work on both sides. Overall length is quoted in two states because a chair reclined flat occupies 445 mm more floor than a chair in the seated position — dialysis units are usually laid out on the flat figure. Castor specification (5 inch twin-wheel, central-locking brake on both sides) matters for two reasons: the wheel diameter sets how easily the chair crosses thresholds and floor joints, and a central-locking brake locks all four wheels from one pedal instead of four separate brakes. Power supply accepts 100–240 VAC at 50 or 60 Hz, so a single SKU can ship to North American and European markets without a voltage variant. Backrest, knee rest and seat tilt angles are measured from the horizontal seat plane; the negative backrest figure is the Trendelenburg range used during a hypotensive episode. Integrated weighing scale accuracy is quoted at a 60 kg reference load, with selectable display resolution of 50 g or 100 g.

Outline Drawing and Room Planning

Outpatient draw rooms are usually tight, so the seated footprint is the figure to design around: 1,500 mm long and 920 mm across the armrests, narrowing once the armrests swing back through -90° to +90°. Seat height adjusts from 550 to 800 mm, which matters for older or frail patients — a low seat lets someone sit down unaided, and that is often the reason a recliner is specified instead of a fixed draw chair. If a patient becomes syncopal mid-draw, the chair reclines to the full 1,945 mm flat position, and the one-touch CPR button drops backrest, seat and legrest together into Trendelenburg without staff having to reposition the patient by hand. Castors are 5 inch twin-wheel with a central-locking brake on both sides, so a chair can be wheeled out of the room and locked again from a single pedal.

All units are manufactured under strict quality management systems and certified with CE, FDA, ISO 9001, and ISO 13485, fully compliant with international medical device standards. This product delivers safety, stability, and professional performance for modern healthcare settings.
